Pitch/36mm
Category
    Relay-type Terminal Block
Type number F1007-PCA
Production Status In production
Rating Voltage 600 V
Rating Ampere 250 A
Insulation Resistance 500V 1000MΩ 以上
Anti-voltage AC3000V 1minute and over
Compatible Wire 150 mm²
Tightening torque 12.0 N・m
General Tolerance ±0.5mm
Scale 1/2
Ordering Form [Type No.]-[No.of Poles](P)-[PCA]
Remarks *Other options *Jumper (F2149)
PDF Filepath

F1007-PCA (288.9 KB)

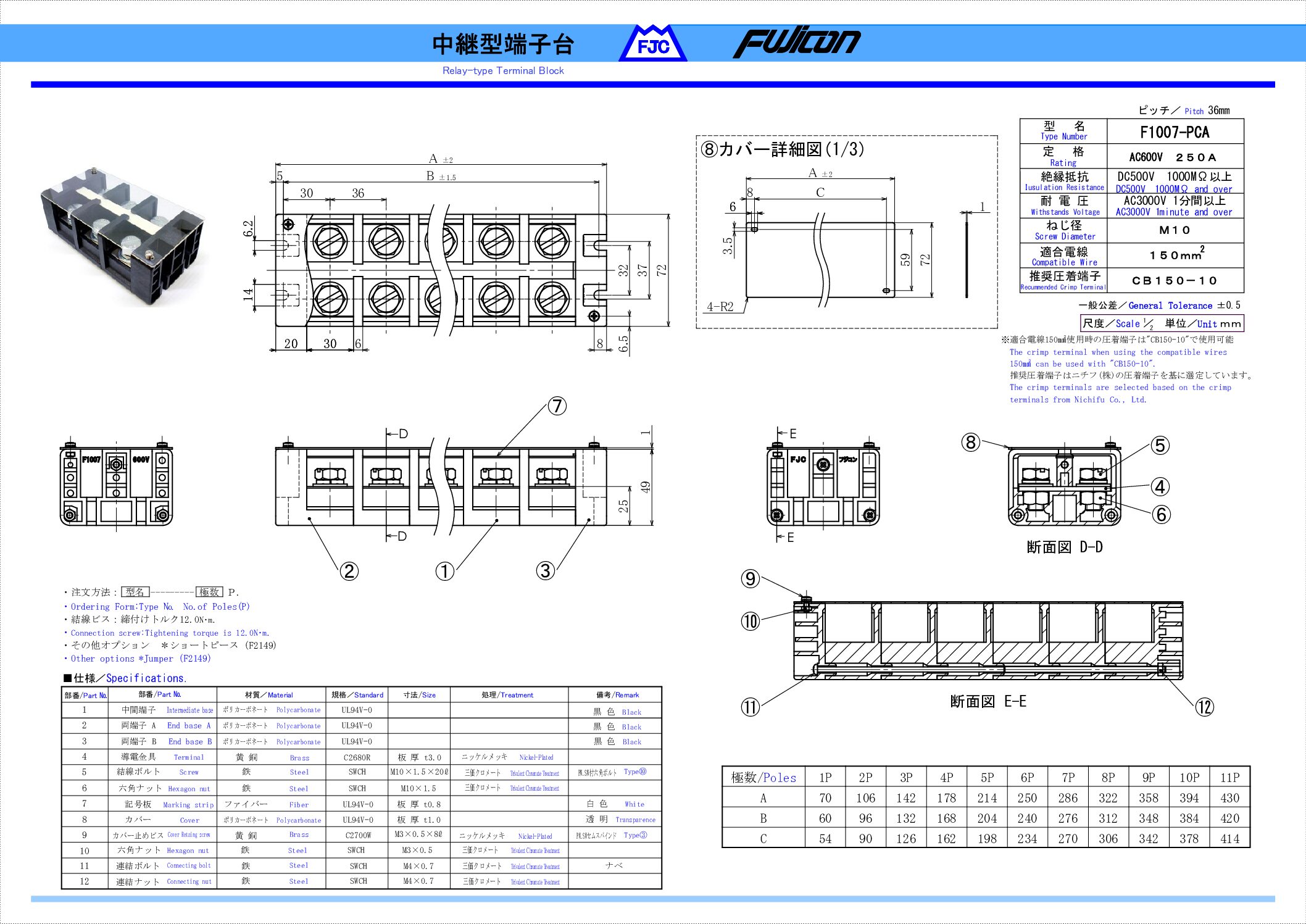

Specification

Part No. Part Name Material Standard Size Treatment Remark
1 Intermediate base PBT UL94V-0 Black
2 End base A PBT UL94V-0 Black
3 End base B PBT UL94V-0 Black
4 Terminal Brass C2680R t3.0 Nickel-Plated
5 Screw Steel SWCH M10×1.5×20L Trivalent Chromate Treatment Type10
6 Hexagon nut Steel SWCH M10×1.5×21L Trivalent Chromate Treatment
7 Marking strip Fiber UL94V-0 t0.8 White
8 Cover Polycarbonate UL94V-0 t1.0 Transparence
9 Cover retaining screw Brass C2700W M3×0.5×8L Nickel-Plated Type3
10 Hexagon nut Steel SWCH M3×0.5 Trivalent Chromate Treatment
11 Connecting bolt Steel SWCH M4x0.7 Trivalent Chromate Treatment
12 Connecting nut Steel SWCH M4x0.7 Trivalent Chromate Treatment
Number of poles 1P 2 3 4 5 6 7 8 9 10 11
A 70 106 142 178 214 250 286 322 358 394 430
B 60 96 132 168 204 240 276 312 348 384 420
C 54 90 126 162 198 234 270 306 342 378 414
