Product Infromation
Pitch／16mm
| Category |
|
|---|---|
| Type number | F1005NN-60A |
| Production Status | Production discontinuation |
| Rating Voltage | 660 V |
| Rating Ampere | 60 A |
| Insulation Resistance | 500V 1000MΩ 以上 |
| Anti-voltage | AC3000V 1minute and over |
| Compatible Wire | 14.0 mm² |
| Tightening torque | 2.4 N・m |
| General Tolerance | ±0.5mm |
| Scale | 1/2 |
| Ordering Form | [Type No.]-[No.of Poles](P) |
| Remarks | *Other options *Jumper (F2117) |
| PDF Filepath |

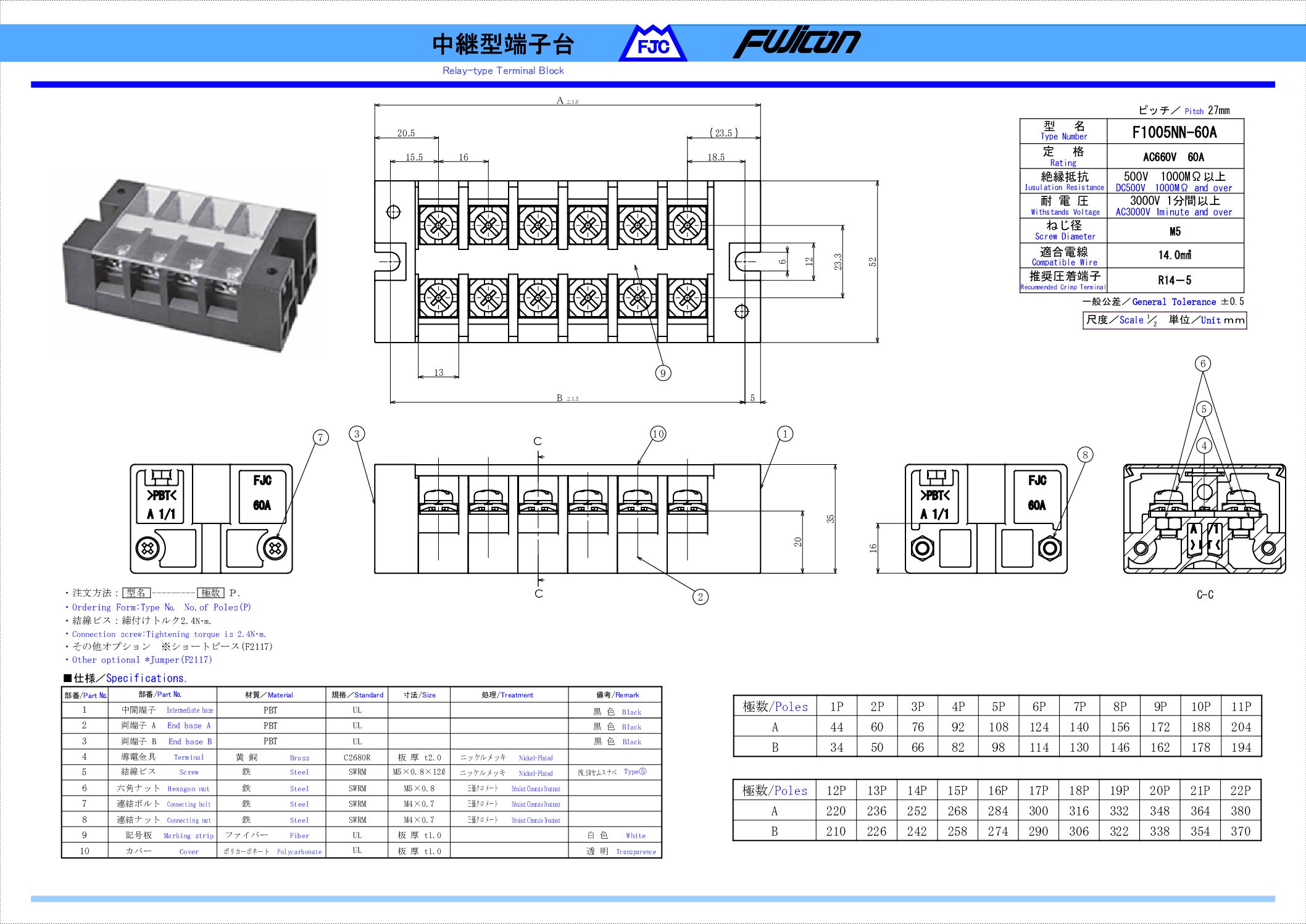

F1005NN-60A (373.4 KB) |
- contact
- Online sales
Specification
| Part No. | Part Name | Material | Standard | Size | Treatment | Remark |
|---|---|---|---|---|---|---|
| 1 | Base(A) | PBT | UL94V-0 | Black | ||
| 2 | Base(B) | PBT | UL94V-0 | Black | ||
| 3 | Base(C) | PBT | UL94V-0 | Black | ||
| 4 | Terminal | Brass | C2680 | t2.0 | Nickel-Plated | |
| 5 | Screw | Steel | SWRM | M5x0.8x12L | Nickel-Plated | Type1 |
| 6 | Hexagon nut | Steel | SWRM | M5x0.8 | TrivalentChromate Treatment | |
| 7 | Connecting bolt | Steel | SWRM | M4 | TrivalentChromate Treatment | |
| 8 | Connecting nut | Steel | SWRM | M4 | TrivalentChromate Treatment | |
| 9 | Marking strip | Polycarbonate | UL94V-0 | t1.0 | White | |
| 10 | Cover | Polycarbonate | UL94V-0 | t1.0 | Transparence |
| Number of poles | 1P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 44 | 60 | 76 | 92 | 108 | 124 | 140 | 156 | 172 | 188 |
| B | 34 | 50 | 66 | 82 | 98 | 114 | 130 | 146 | 162 | 178 |
| Number of poles | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 204 | 220 | 236 | 252 | 268 | 284 | 300 | 316 | 332 | 348 |
| B | 194 | 210 | 226 | 242 | 258 | 274 | 290 | 306 | 322 | 338 |
| Number of poles | 21 | 22 | 23 | 24 |
|---|---|---|---|---|
| A | 364 | 380 | 396 | 412 |
| B | 354 | 370 | 386 | 402 |
