Product Infromation
Pitch／9mm
| Category |
|
|---|---|
| Type number | F2053E-5P |
| Production Status | In production |
| Rating Voltage | 300 V |
| Rating Ampere | 15 A |
| Insulation Resistance | DC500V 1000MΩ 以上 |
| Anti-voltage | AC2500V 1minute and over |
| Compatible Wire | 1.25 mm² |
| Tightening torque | 0.6 N・m |
| General Tolerance | ±0.5 mm |
| Scale | 1/1 |
| Ordering Form | [Type No.]-[No.of Poles](P) |
| Remarks | Other options *Jumper(F2136) |

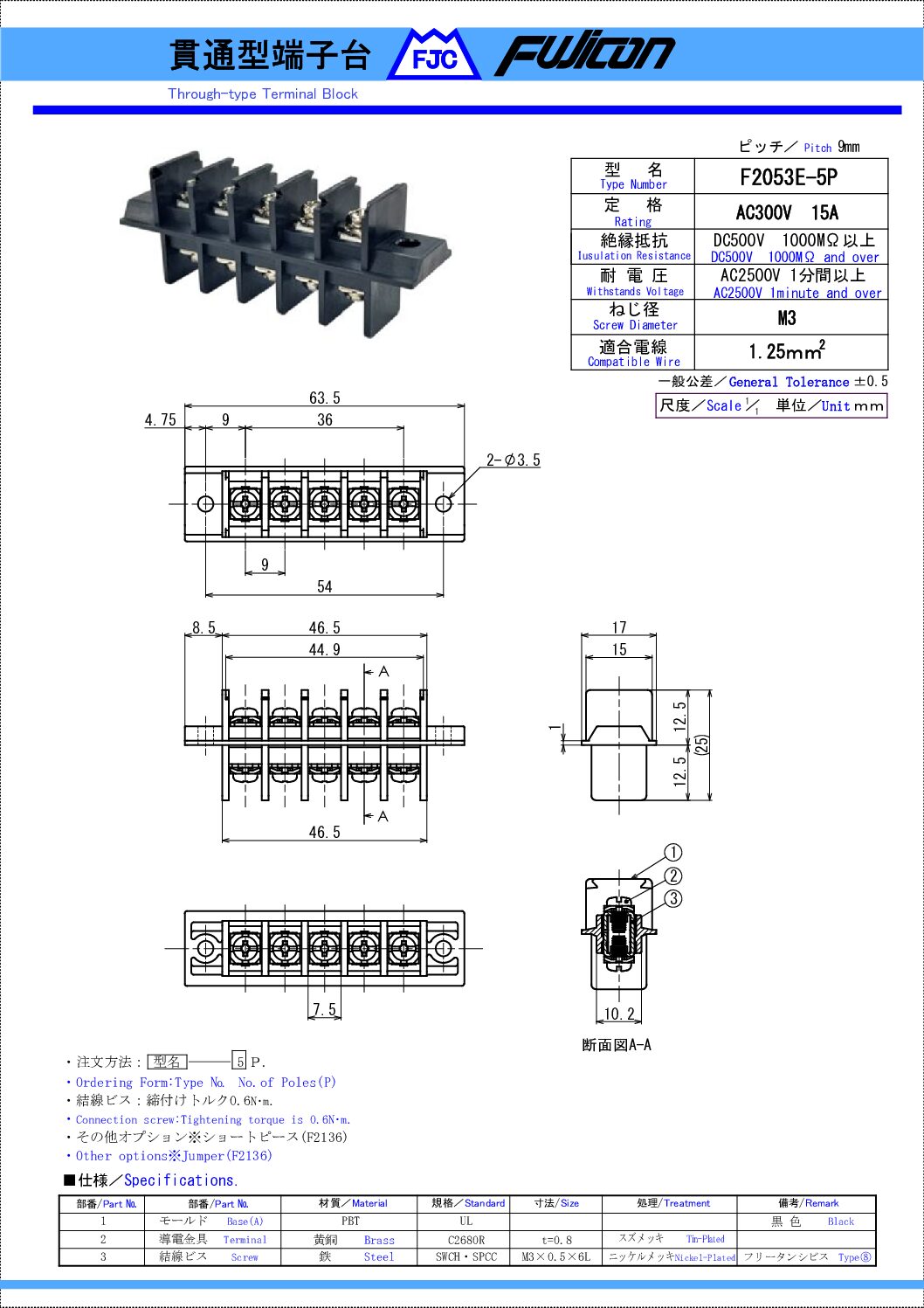

| PDF Filepath |
F2053E-5P (302.8 KB) |
- contact
- Online sales
Specification
| Part No. | Part Name | Material | Standard | Size | Treatment | Remark |
|---|---|---|---|---|---|---|
| 1 | Base | PBT | UL | Black | ||
| 2 | Terminal | Brass | C2680R | t0.8 | Tin-Plated | |
| 3 | Screw | Steel | SWCH・SPCC | M3x0.5x6L | Nickel-Plated | Type3 |
